N460

Our main products are industrial motherboard, industrial pc, industrial panel pc, firewall pc and mini pc, which are widely used in industrial automation, machine vision, robotics, digital signage, and intelligent monitoring. Backed by strict quality control and mature production systems, we ensure stable performance and long-term reliability.

Product Introduction

CPU	Intel Core 4th~10th 13/15/17 processor
Display	VGA1 HDMI1, same/asynchronous dual-display
Network	Gigabit LAN port*2, support Wake-on-LAN
Storage	Gen 4-5: SATA1 MSTA1 Gen 8-10: SATA1 M.2 NVME1
USB	USB*6
COM	COM*2, support RS232/ RS485
Memory	Generation 4-5: Support 1 DDR3 Maximum 8G Generation 8-10: Support 1 DDR4Maximum 32G
Audio	3.5mm standard audio jack
Extended	MINI PCIE Support WIFI/4G Module
Watchdog	Support hardware reset function (256 levels, 0~255 seconds)
Incoming Power On	BIOS Support

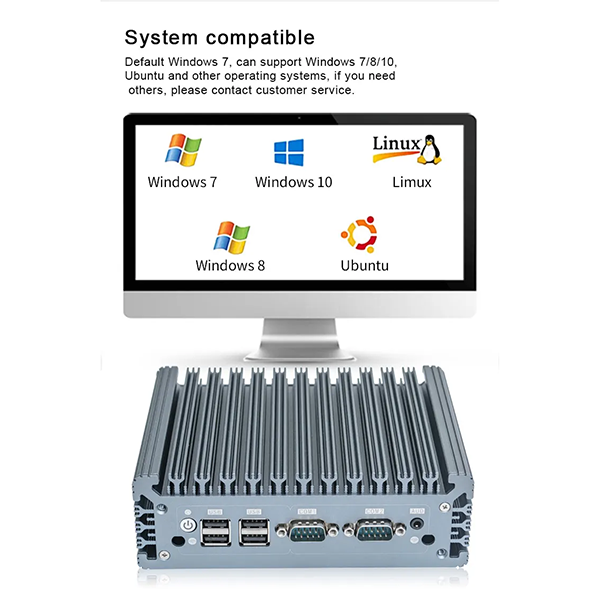

System support	WIN7/WIN10/LINUX/UBUNTU/CENTOS etc.
Operating temperature	20°C~65°C(Storage temperature -20°C~75°C)
Size	165x125x55(LxWxH)mm

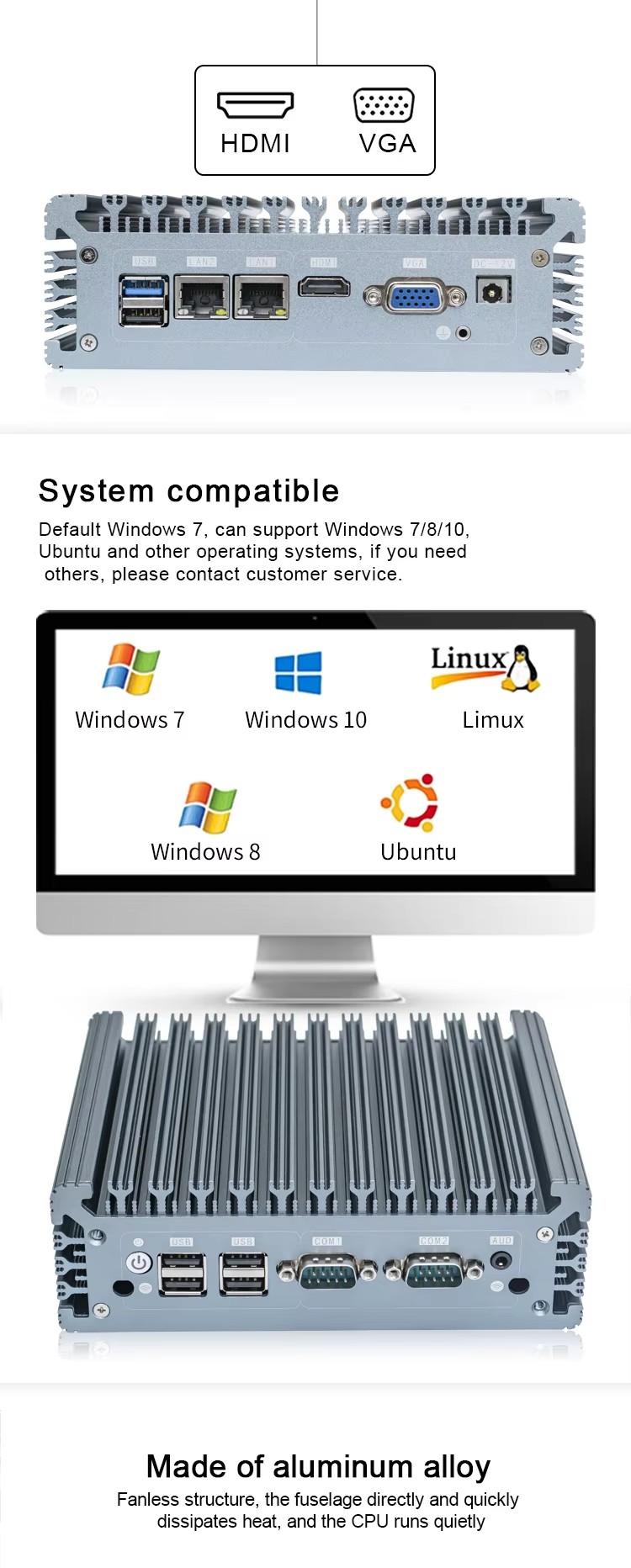

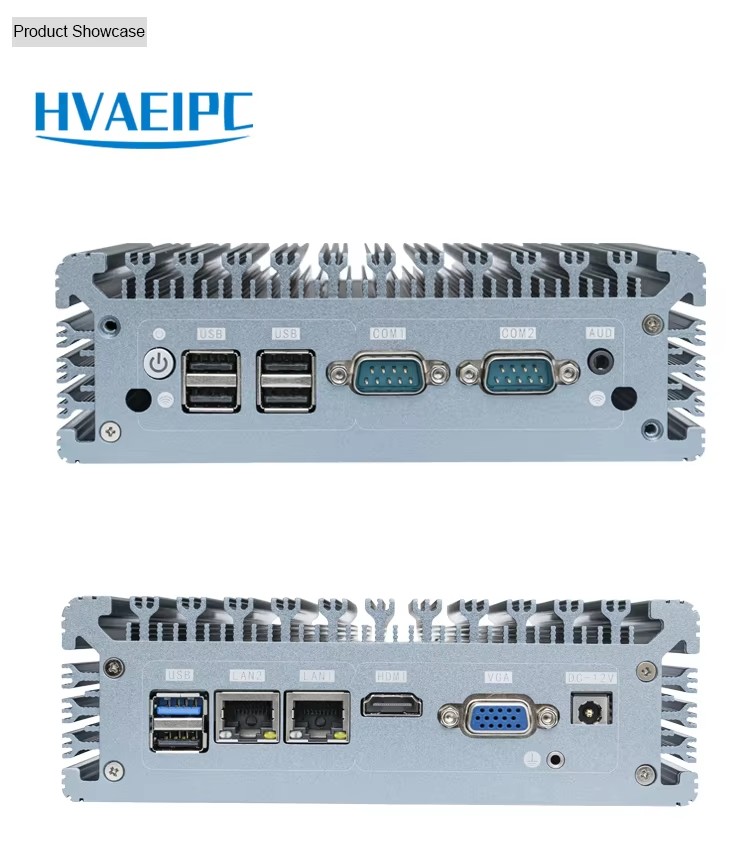

Chassis Interface	COM2, USB 2.04, USB 3.02, LAN2, HDMI1, VGA1, AUD 101, DC 12V1

Processor	Integrated In-tel 3 core processor Integrated In-tel 5 core processor Integrated In-tel 7core
Chip set	Based on In-tel®Integrated SOC platform
Memory	Support DDR3/1.35V 4GB upgrade to 8GB
Storage	1SATA3.0, 1MSATA SSD
Display	Integrated In-tel® UHD Graphics
	1VGA,1HD-MI
	Support dual independent display.
Network	RTL 8111
OS	Support Wins 10/11 & Linux
Audio	On-board ALC662 6-channel high fidelity audio controller
I/O	2Serial COM port 1 9pin, 2*RS232/RS485 optional
	1* HD-MI
	1* VGA
	6*USB port 2X2.04X3.0
Heat sink	4 *holes CPU heat sink connector
Power	DC_12V single power supply input
Work Temp	-10℃～50℃ .
Storage Temp	-20℃～70℃
Humidity	5%-95% relative humidity, non-condensing
Dimension	165x125x55mm
