Shenzhen Huawei Intelligence Co., Ltd.
Shenzhen Huawei Intelligence Co., Ltd.
Industrial Embedded PC

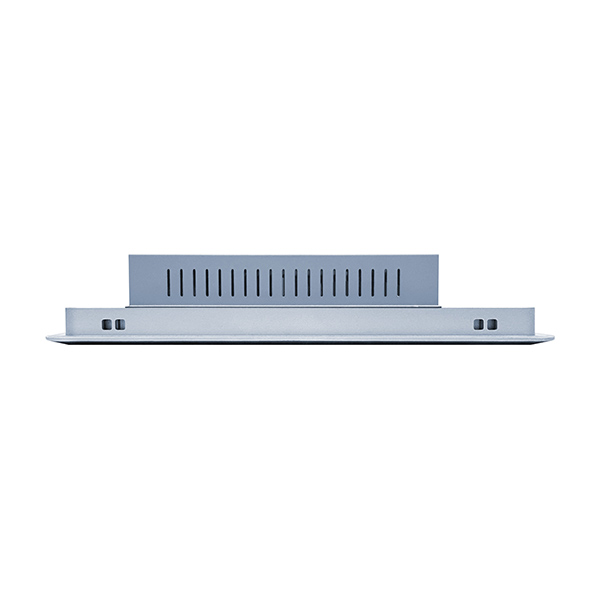

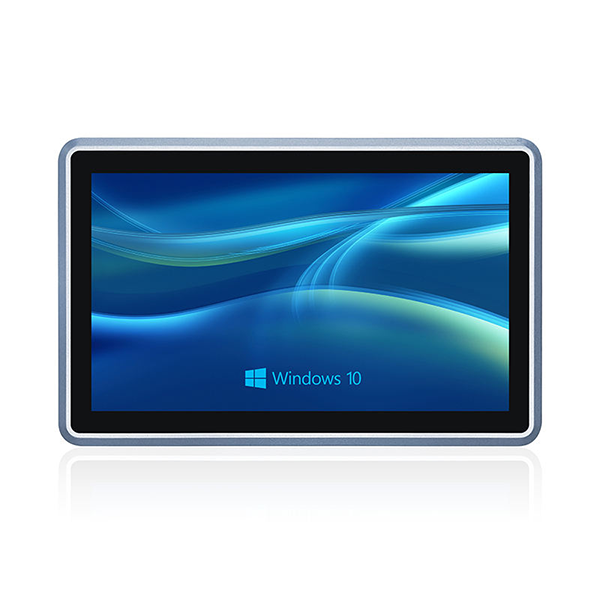

HW-15.6IPC
Our main products are industrial motherboard, industrial pc, industrial panel pc, firewall pc and mini pc, which are widely used in industrial automation, machine vision, robotics, digital signage, and intelligent monitoring. Backed by strict quality control and mature production systems, we ensure stable performance and long-term reliability.
| Product Name | HW-15.6IPC |
| Processor | Integrated In-telzCe-leronIntelCore@processor |
| Chip set | Based on In-telRIntegrated SOC platform |
| Memory | Support DDR3/DDR4 4GB upgrade to 32GB |
| Storage | 1*MSATA 32G/64G/128G/256G/512G/1TB/2TB SSD |
| Display | Integrated In-telE UHD Graphics |
| 1*VGA,1*HD-MI | |
| Support dual independent display. | |
| Network | RTL 8111 |
| OS | Support Wins 10/11 & Linux |
| Audlo | On-board ALC662 6-channel high fidelity audio controller |
| I/O | 2*Serial COM port 1 *9pin, 2*RS232/RS485 optional |
| 1* HD-MI | |
| 1* VGA | |
| 6* USB port | |
| 1*DC12V | |
| 4*WIFIhole | |
| 1*Line out | |
| 1*MIC 1*LAN | |
| Heat slnk | 4 *holes CPU heat sink connector |
| Power | DC_12V single power supply input |
| Work Temp | 10°C~50°C. |
| Storage Temp | -20°C~70°C |
| Humidity | 5%-95% relative humidity, non-condensing |
| Dimension | 538x334x68mm |
