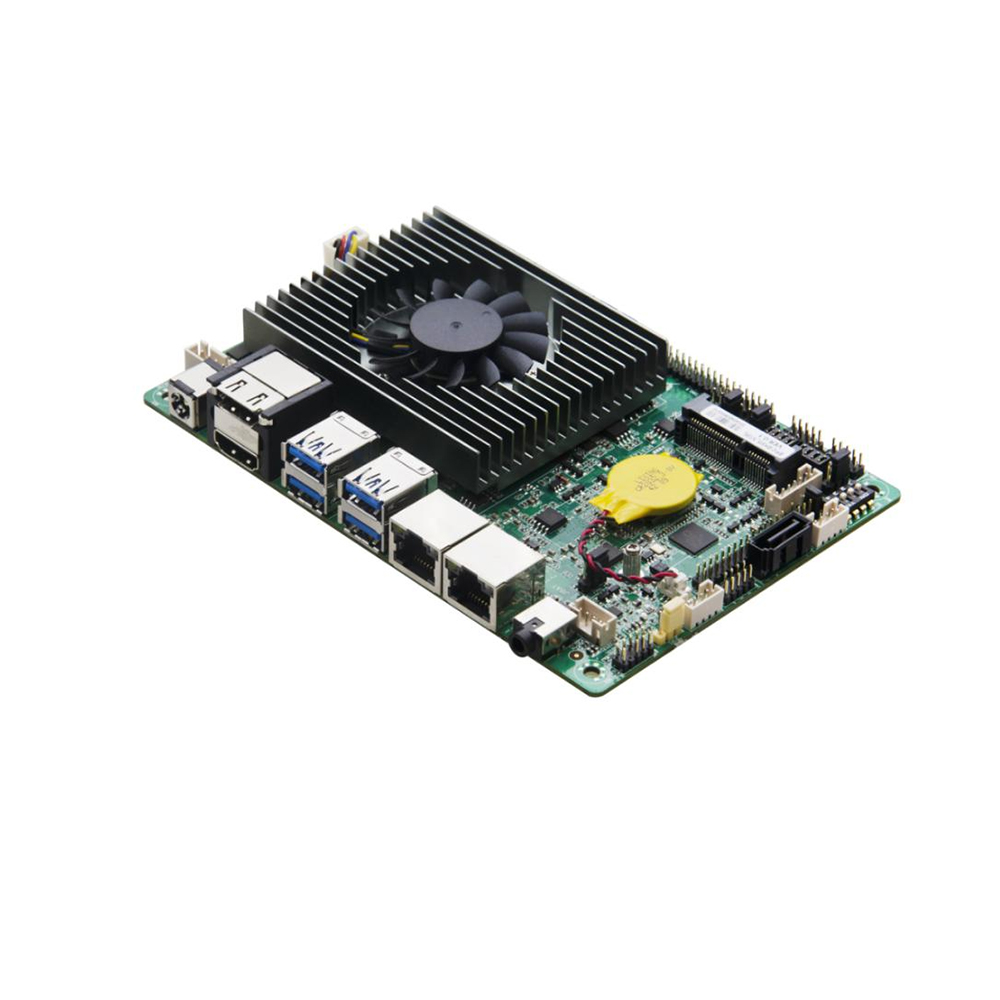

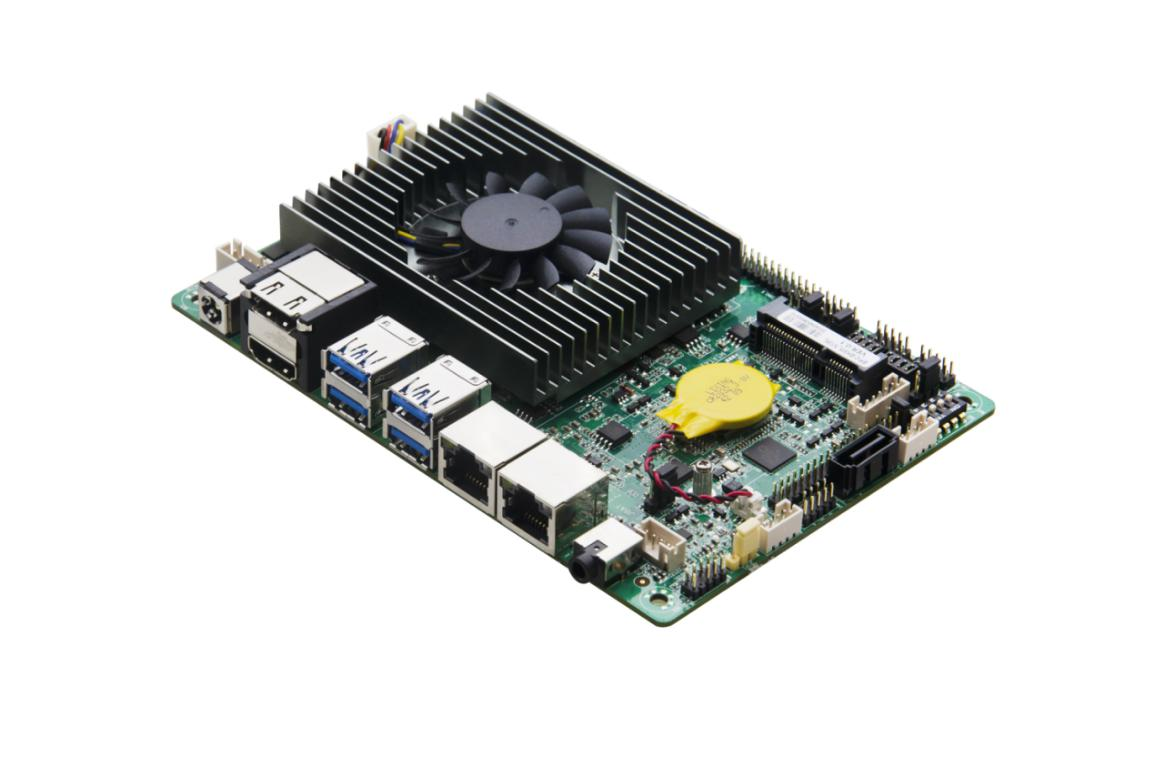

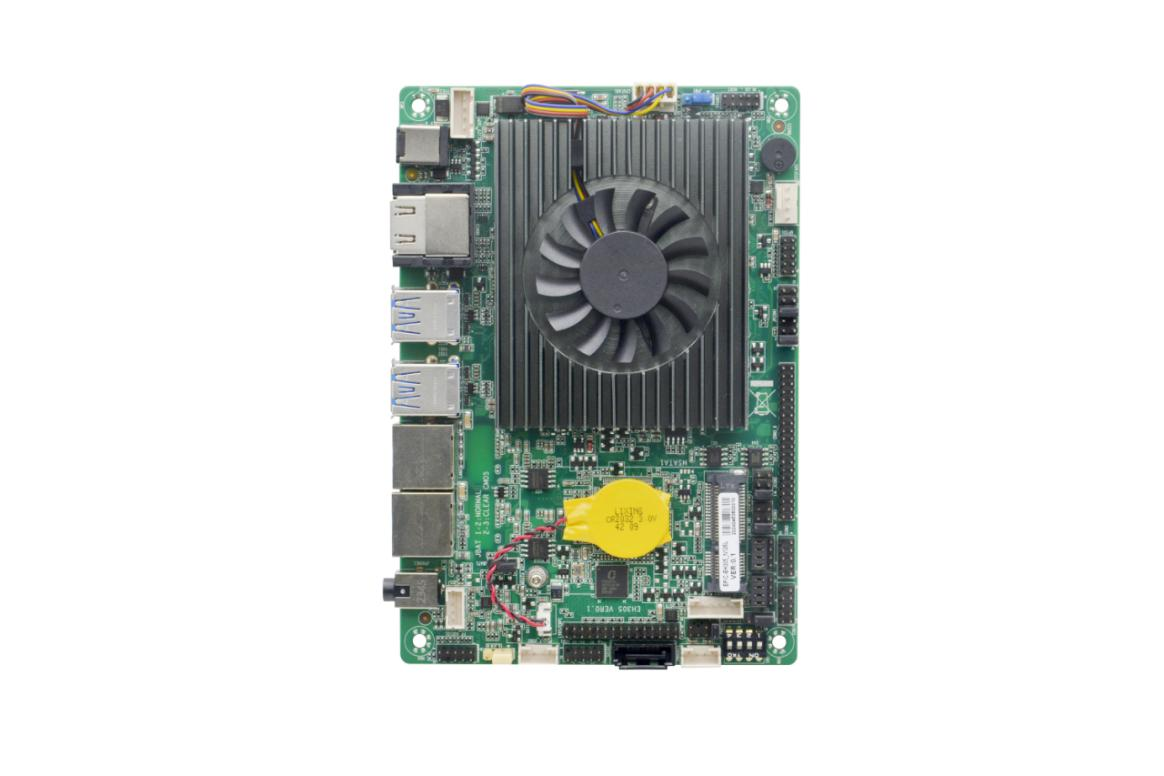

HW100
Our main products are industrial motherboard, industrial pc, industrial panel pc, firewall pc and mini pc, which are widely used in industrial automation, machine vision, robotics, digital signage, and intelligent monitoring. Backed by strict quality control and mature production systems, we ensure stable performance and long-term reliability.
| Product Model | HW100 |
| Processor | Compatible with the full range of Intel® Alder Lake-N CPUs for flexible customer selection |
| Chipset | SOC |
| Memory | 1* SODIMM slot, support single-channel 3200MHz DDR4 memory, maximum support 16GB |
| Display
|
Integrated Intel® UHD Graphics core graphics card, support for DirectX 12.1, OpenGL4.6 |
| 2*HDMI1.4 interface, 1*LVDS interface
Note: LVDS and EDP interfaces share the same row of pins, through the jumpers to select |
|
| Network | 2* I226V Gigabit LAN card, support Wake-on-LAN and PXE function. |
| Storage
|
1* 7pin SATA3.0 hard drive interface, transfer rate up to 6Gbps |
| 1* MSATA slot, support SSD, SSD transfer rate up to 6Gbps | |
| Audio
|
Onboard ALC897 7.1+2-channel hi-fi audio controller, support MIC/Line-out. amplifier |
| Amplifier recommended to use 4Ω 3W speakers | |
| Expansion Slots | 1* M.2 slot, support M.2 2230 WIFI/Bluetooth module |

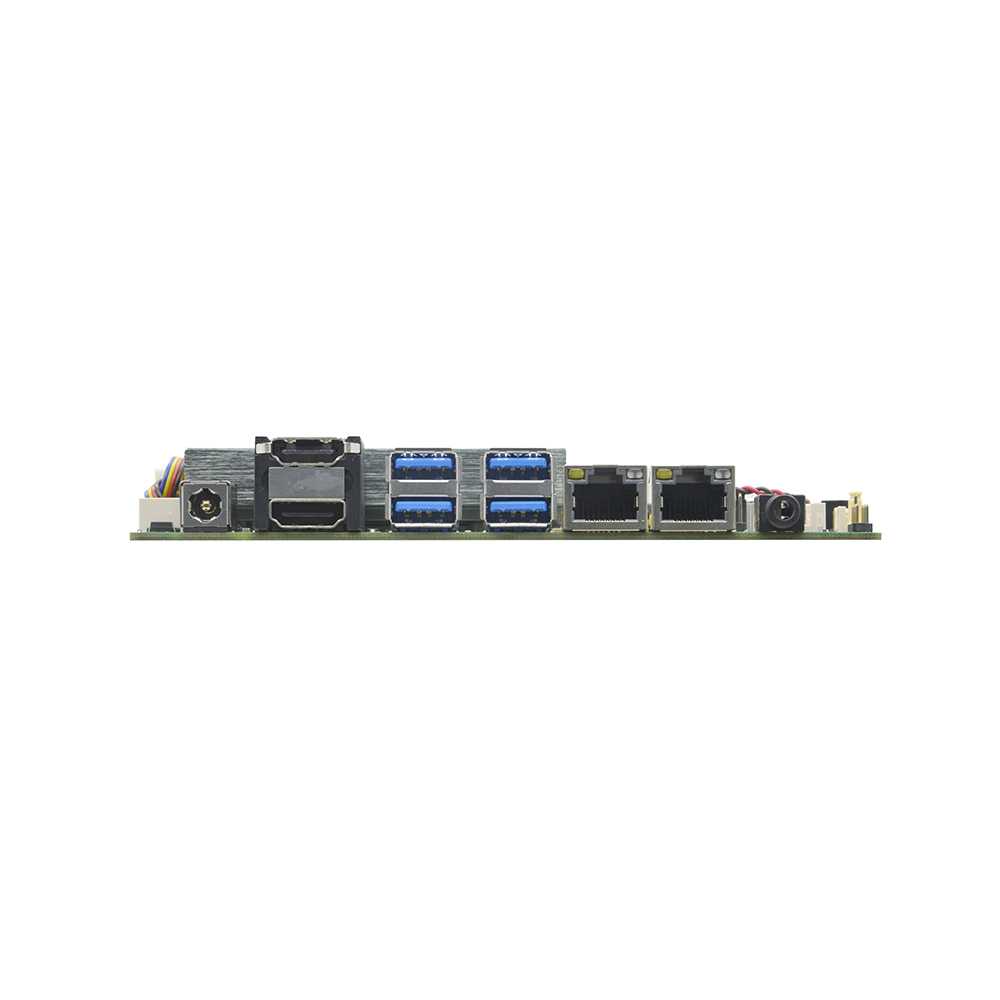

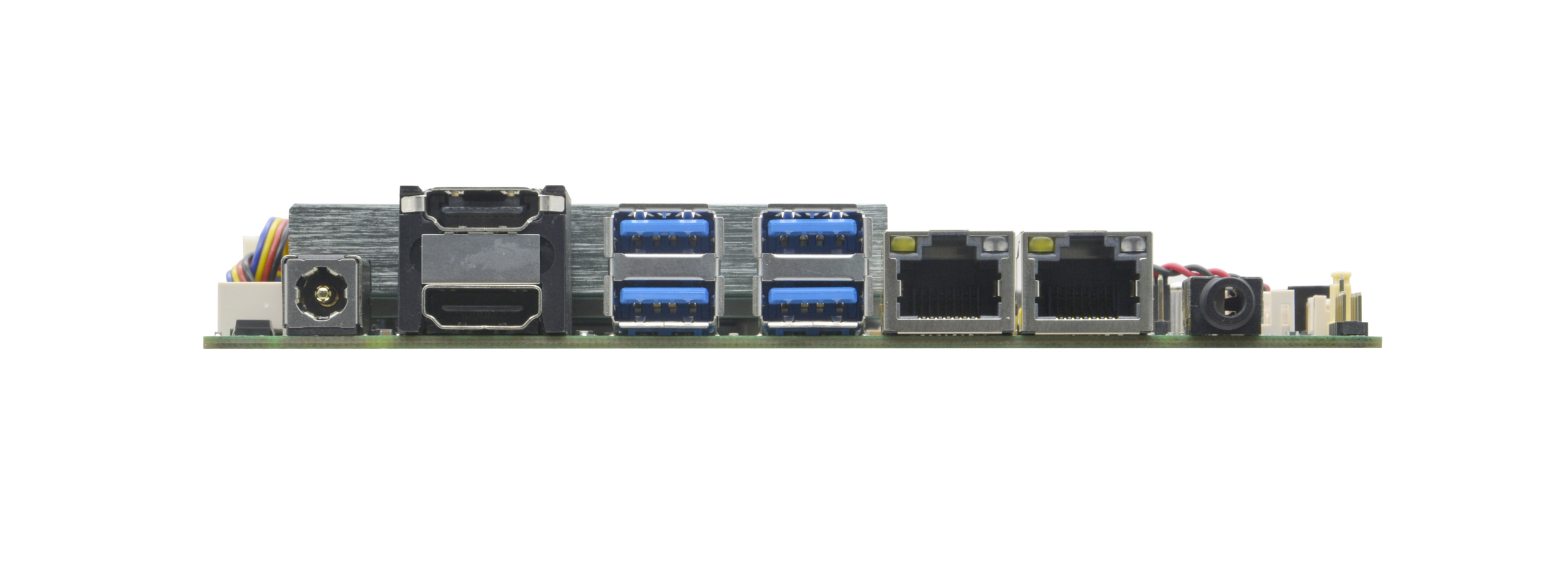

| Backplane I/O Ports
|
2* HDMI1.4 display interface |
| 4* USB3.0 interface, | |
| 2* RJ45 Gigabit network interface | |
| 1* Two and one audio interface, support Line-out, MICK | |
| Built-in I/O Ports
|
1* DC power supply interface, 1*4pin support 12V power input and output |
| 1* LVDS interface, 2*15pin, support dual-channel 24BIT, and EDP for the common row of pins, through the jump risk selection | |
| 1* Screen backlight power supply interface 1*6pin | |
| 2* USB2.0 interface, 2*5pin | |
| 1* USB2.0 interface 1*4pin | |
| 6* RS232 serial interface, COM1/2 support the 9th pin with power function, COM2/COM3 support RS485/422 function. | |
| 1* HDD power supply interface 1*4pin | |
| 1* Front Audio Interface 2*5pin | |
| 1* Power amplifier interface 1*4pin | |
| 1* Front Panel Function Button and Indicator Interface 2*5pin | |
| Fan Interface | 1*4pin CPU smart fan interface, 1*4pin system fan interface |
| GPIO | Support 4-way input/output GPIO |
| BIOS | 256Mb Flash ROM |
| Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
| Operating System | Windows 10/Windows 11/Linux |
| Power Supply Type | DC 12V power supply |
| Operating Temperature | -10℃～60℃ |
| Storage Temperature | -20℃～70℃ |
| Working Humidity | 5%-95% relative humidity, non-condensing |
| Dimension | 148mm x 102mm |
